WR90 40dB Waveguide Cross Coupler 2/3/4 WG ports

Name: WR90 40dB Waveguide Cross Coupler 234 WG ports
Brand: Zysen
Price: 1 USD

Model Number : 90WC4-40

Frequency Range : 9.75-10.25GHz

coupling : 40dB

Mainline VSWR : 1.10:1 Max

Waveguide port : WR90

Flange : FBP100

Brand Name : Zysen

MOQ : 1pc

Place of Origin : Chengdu,China

Delivery Time : 2-4 Weeks

Price : Negotiable

Payment Terms : T/T, L/C,D/A

Certification : ISO9001

Contact Now

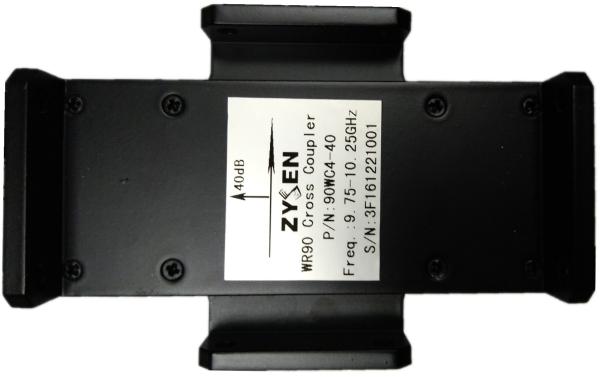

WR90 40dB Waveguide Cross Coupler (4 waveguide ports)

Waveguide Cross Coupler, including 4 Waveguide Ports Type,3 Waveguide Ports Type and 2 Waveguide Ports+1 Coaxial Port Type, from WR28 to WR975. bandwidth 10% to 20%, coupling from 20dB to 50dB, directivity 18dB typ. Mainline VSWR1.15.

Standard black paint, others colour is available. flange is compatible with EIA Standard and IEC Standard, check details with us.

Electrical Specifications
Frequency Range	9.75-10.25GHz
Coupling	40dB
Coupling Accuracy	±0.7dB max
Frequency Sensitivity	±0.7dBmax
Insertion Loss	0.1dB max
Power Handling	200W
Mainline VSWR	1.10 max
Secondline VSWR	1.25 max
Directivity	18dB min
Flange	FBP100
Waveguide	WR90
Material	Al
Outside Finish	Black Paint

WR90 40dB Waveguide Cross Coupler 2/3/4 WG ports Manufactures

WR90 40dB Waveguide Cross Coupler 2/3/4 WG ports Images
