18GHz Fixed RF Attenuator

Name: 18GHz Fixed RF Attenuator
Brand: Zysen
Price: 1 USD

Model Number : ZSJXX-250SN-18T

Place of Origin : Chengdu,China

power handling : 250W

attenuaiton : 10-60dB

VSWR : 1.45

Connector : N-Male/Female

Housing : Aluminum, Black Anodize

Temperature Range : -55ºC ~ +125ºC

Brand Name : Zysen

MOQ : 1pc

Delivery Time : 2-4 Weeks

Price : Negotiable

Payment Terms : T/T, L/C,D/A

Certification : ISO9001

Contact Now

DC-18GHz 250Watts High Power Fixed Attenuator,10~60dB Attenuation

Zysen's 250W attenuators available with DC-3GHz, DC-6GHz, DC-12.4GHz, DC-18GHz, 50 impedance & SMA, N Female/Male connectors. Available with 10, 20 , 30dB&40dB to 50dB, 60dB attenutation.

Electrical Specifications
Frequency Range	DC – 18GHz
Power	250W CW @ 25ºC
Attenuation	10dB, 20dB	30dB, 40dB	50~60dB
Attenuation Accuracy	±1.5dB max	±1.3dB max	±1.4dBmax
VSWR	1.45 max
Impedance	50ohm
Input Connector	N-Male
Output Connector	N-Female
Temperature Range	-55ºC ~ +125ºC

Mechanical Specification
Connector Material	Cu
Housing	Aluminum, Black Anodize

Product Tags:

18GHz Fixed RF Attenuator

250 Watts Fixed Rf Attenuator

High Power 20 db attenuator

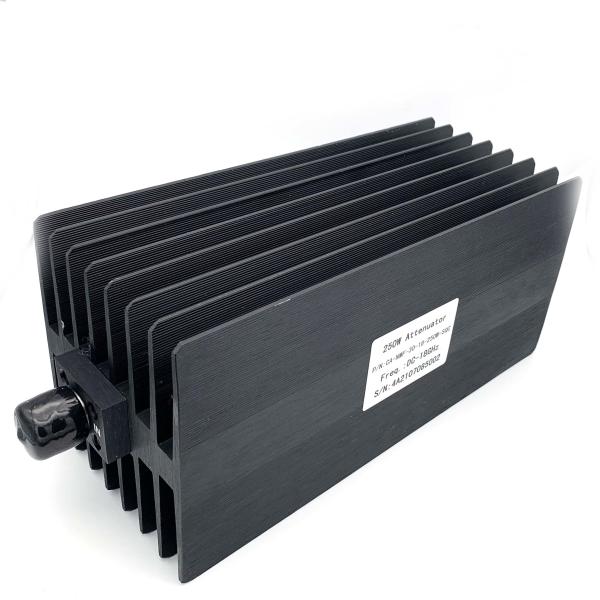

18GHz Fixed RF Attenuator Images
