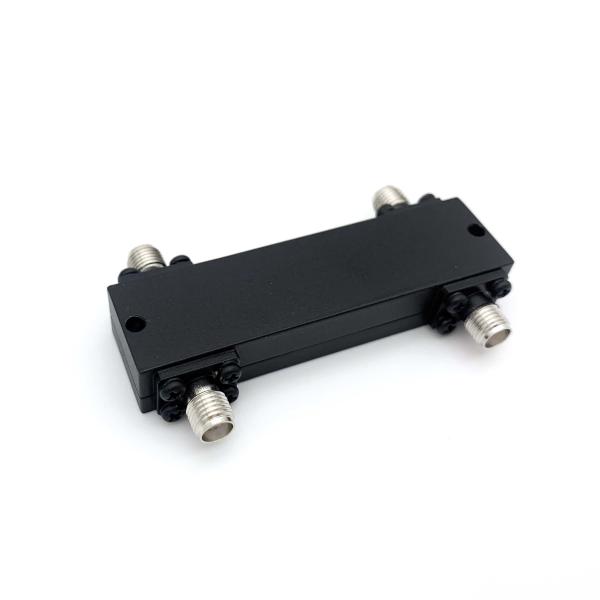

6GHz 90 Degree Hybrid Coupler

Name: 6GHz 90 Degree Hybrid Coupler
Brand: Zysen
Price: 1 USD

Model Number : ZSDQ-0860-90S

Place of Origin : Chengdu,China

Frequency Range : 0.8-6GHz

isolation : 18dB Min.

Insertion Loss : 0.5dB Max.

Power : 50W Max.

Connector : SMA-Female

Brand Name : Zysen

MOQ : 1pc

Price : Negotiable

Delivery Time : 2-4 Weeks

Payment Terms : T/T, L/C,D/A

Certification : ISO9001

Contact Now

0.8 to 6GHz 90º Hybrid 3dB Coupler

Zysen offer 90degree Hybrid Coupler and 180degree Hybrid Coupler. Up to 50GHz, narrow band and broadband are available, Connector type SMA,N,2.92mm,2.4mm are optional. Customized frequency and optimized specifications available. Contact us with your requirement.

Electrical Specifications
Frequency Range	0.8 – 6.0GHz
Coupling	10±0.7dB
Frequency Sensitivity	≤±0.7dB
Insertion Loss	≤0.5dB (Excluding coupled power 0.46dB)
Directivity	≥18dB
VSWR	Primary ≤1.20:1 Secondary ≤1.20:1
Power Handling	Incident ≤50W Reflected ≤2W
Impedance	50ohm
Connectors	SMA-Female
Operating Temperature	-40ºC ~ +70ºC
Storage Temperature	-55ºC ~ +85ºC
