50W 451MHz Microwave Power Divider UHF 2 Way Power Combiner

Chengdu Zysen Technology Co., Ltd.
Contact Now

50W 451MHz Microwave Power Divider UHF 2 Way Power Combiner

  • 1
  • 2

Model Number : ZSPD-451-XN

Certification : ISO9001

Place of Origin : Chengdu,China

frequency range : 451MHz

Number of Output Ports : 2 Ports

Impedance : 50ohms

connector : N-Female

Power : 50W

Brand Name : Zysen

MOQ : 1pc

Price : Negotiable

Delivery Time : 2-4 Weeks

Payment Terms : T/T, L/C,D/A

Contact Now

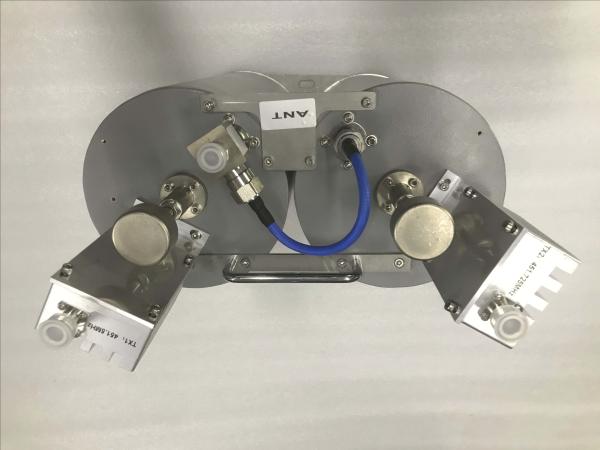

UHF 451MHz 2-way Cavity Transmitter Combiner

Zysen's 2-way, 3-way, 4-way, 6-way, 8-way low frequency UHF transmiter combinerm, power handling 50Watts, Tuning range 5MHz. operating frequecny is customizable, contact us with your requirement(sales@zysentech.com).

1. Electrical Specifications
Frequency range 350-470MHz
Frequency Separation ≥250 KHz
Tuning Range 5.0MHz
VSWR

Input≤1.25

Output≤1.50

Isolation ANT-TX ≥55dB
Isolation TX-TX ≥65dB
Power 50W(CW)
Temperature

normal temperature +15℃~+35℃

ultimate temperature -10℃~+65℃

Connectors N-Female,50Ω
Color Gray
Channels Insertion Loss Size(19inch Jack Mount)
330-400MHz 400-470MHz 470-520MHz L(mm) W(mm) H(mm)
2 ≤3.2dB ≤3.4dB ≤3.6dB 175 483 533
3 ≤3.4dB ≤3.6dB ≤3.8dB 340 483 533
4 ≤3.6dB ≤3.8dB ≤4.0dB 340 483 533
6 ≤4.2dB ≤4.4dB ≤4.6dB 510 483 533
8 ≤4.6dB ≤4.8dB ≤5.0dB 680 483 533

Chengdu Zysen Technology Co., Ltd. (Zysen) is a valued manufacturer of high performance RF Microwave Components and related services. With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
We have professional technician team all in this area more than 10 years, welcome customers from all over the world visit our website, and inform us if you have any needs, we are looking forward to offer you good services!
Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the military, satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
The entire Zysen staff is willing to go the extra mile to satisfy our customers’ needs , besides the standard products offered, we also do customization. Even you only need one piece, you will still receive warm and professional treatment. Quotes will reply your inquiry within 48 hours. We excel in providing made-to-order, one-of-a-kind and hard-to-find products.
With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.

Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the military, satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
