FBP120 15.0GHz WR75 Waveguide 90 Degree E Bend Waveguide

Product Categories
Chengdu Zysen Technology Co., Ltd.
Contact Now

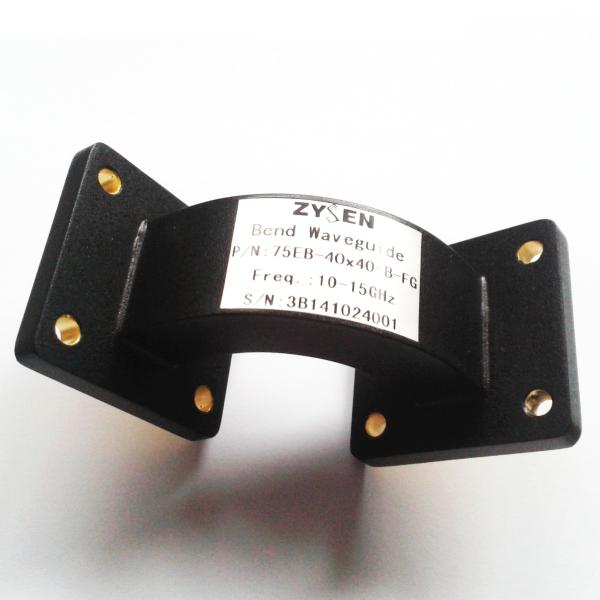

FBP120 15.0GHz WR75 Waveguide 90 Degree E Bend Waveguide

Model Number : 75EB-40x40-B-FG

Frequency Range : 10.0-15.0GHz

Flange : FBP120(Compatible with UBR120)

Brand Name : Zysen

MOQ : 1pc

Place of Origin : Chengdu,China

Delivery Time : 2-4 Weeks

Price : Negotiable

Payment Terms : T/T, L/C,D/A

Certification : ISO9001

Contact Now

WR75 Radius E Plane Bend Waveguide

Zysen s Radius Bend Waveguide and Miter Bend Waveguide, 90 degree bend, E-bend and H-bend, from WR10 to WR975, Custom arm length is available. Contact us with your requirement. Standard black paint, others colour is available. flange is compatible with EIA Standard and IEC Standard, check details with us.

WG Size

90° E Bend

P/N

90° H Bend

P/N

 Freq.
Range
(GHz)		 VSWR Flange Type
WR430 430EB-250x250-A-FF 430HB-250x250-A-FF 1.70-2.60 1.15 FDP22/FDM22
WR340 340EB-180x180-A-FF 340HB-180x180-A-FF 2.20-3.30 1.15 FDP26/FDM26
WR284 284EB-160x160-A-FF 284HB-160x160-A-FF 2.60-3.95 1.15 FDP32/FDM32
WR229 229EB-120x120-A-FF 229HB-120x120-A-FF 3.30-4.90 1.15 FDP40/FDM40
WR187 187EB-80x80-A-FF 187HB-80x80-A-FF 3.95-5.85 1.15 FDP48/FDM48
WR159 159EB-80-80-A-FF 159HB-80-80-A-FF 4.90-7.05 1.15 FDP58/FDM58
WR137 137EB-80x80-A-FF 137HB-80x80-A-FF 5.85-8.20 1.15 FDP70/FDM70
WR112 112EB-60x60-B-FF 112HB-60x60-B-FF 7.05-10.0 1.15 FBP84/FBM84/FBE84
WR90 90EB-55x55-B-FF 90HB-55x55-B-FF 8.20-12.4 1.15 FBP100/FBM100/FBE100
WR75 75EB-50x50-B-FF 75HB-50x50-B-FF 10.0-15.0 1.15 FBP120/FBM120/FBE120
WR62 62EB-40x40-B-FF 62HB-40x40-B-FF 12.4-18.0 1.15 FBP140/FBM140/FBE140
WR51 51EB-35x35-B-FF 51HB-35x35-B-FF 15.0-22.0 1.15 FBP180/FBM180/FBE180
WR42 42EB-35x35-B-FF 42HB-35x35-B-FF 18.0-26.5 1.15 FBP220/FBM220/FBE220
WR34 34EB-35x35-B-FF 34HB-35x35-B-FF 22.0-33.0 1.15 FBP260/FBM260/FBE260
WR28 28EB-30x30-B-FF 28HB-30x30-B-FF 26.5-40.0 1.15 FBP320/FBM320/FBE320
WR22 22EB-20x20-B-FF 22HB-20x20-B-FF 33.0-50.0 1.15 FUGP400
WR19 19EB-25x25-B-FF 19HB-25x25-B-FF 40.0-60.0 1.15 FUGP500
WR15 15EB-25x25-B-FF 15HB-25x25-B-FF 50.0-75.0 1.15 FUGP620
WR12 12EB-25x25-B-FF 12HB-25x25-B-FF 60.0-90.0 1.15 FUGP740
WR10 10EB-25x25-B-FF 10HB-25x25-B-FF 75.0-110.0 1.15 FUGP900
